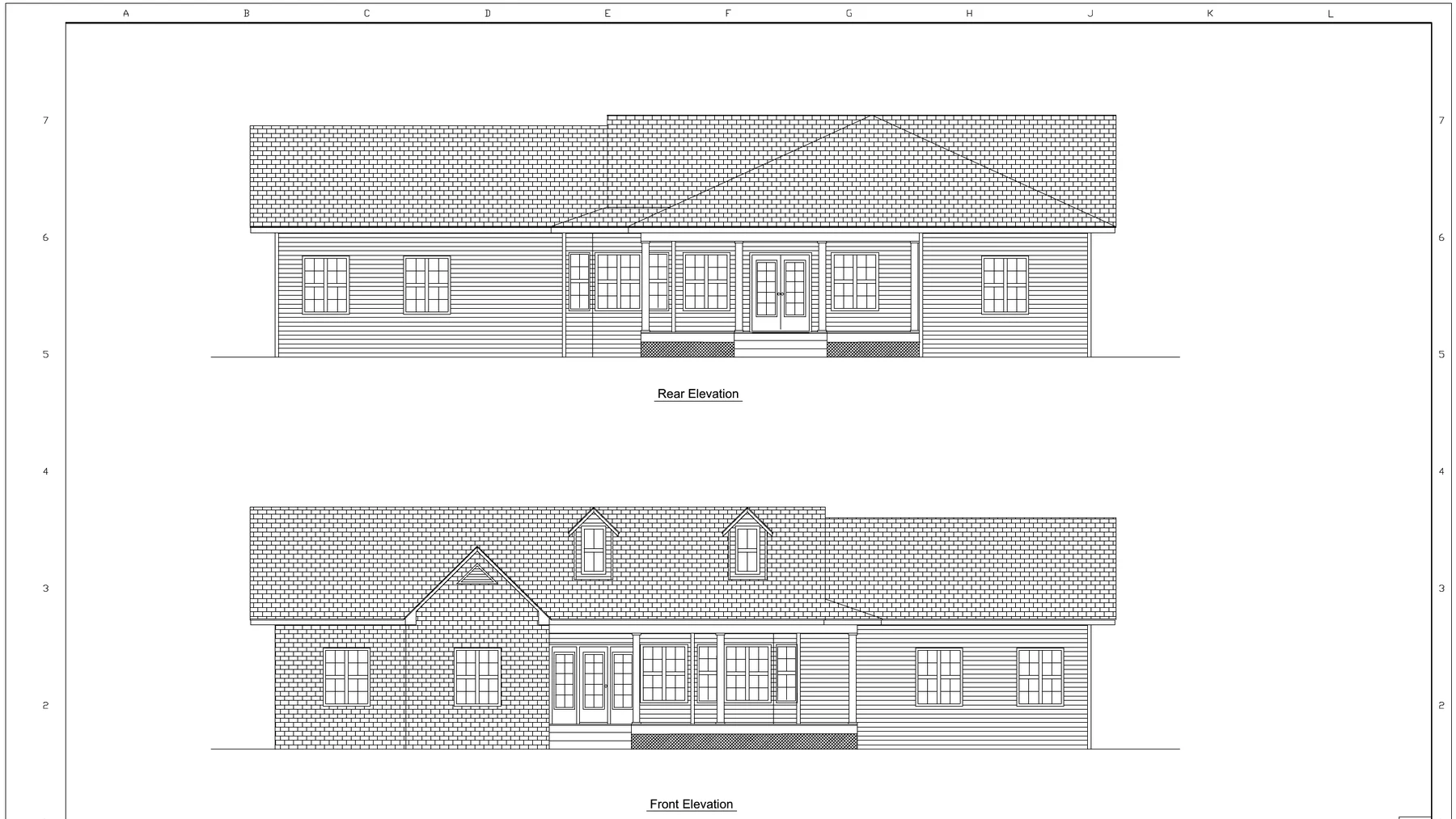

Elevations · Custom residential design
House Plan 64 — Front & Rear Elevations
Front and rear elevations showing siding, rooflines, window and door placement for the full exterior.
Portfolio & Plan Gallery
Real plans and drawing sets from 40 years of experience.
Eight recent drawing sheets — elevations, floor plans and foundation plans — prepared in 2D AutoCAD for permitting and construction.
40 years of design experience
5.0-star rated
Free estimates
Permit-ready drawings
Selected Drawing Sets
Real plans prepared by By Design.
These recent sheets show how elevations, floor plans and foundation plans are documented for construction. Client details have been omitted for privacy.

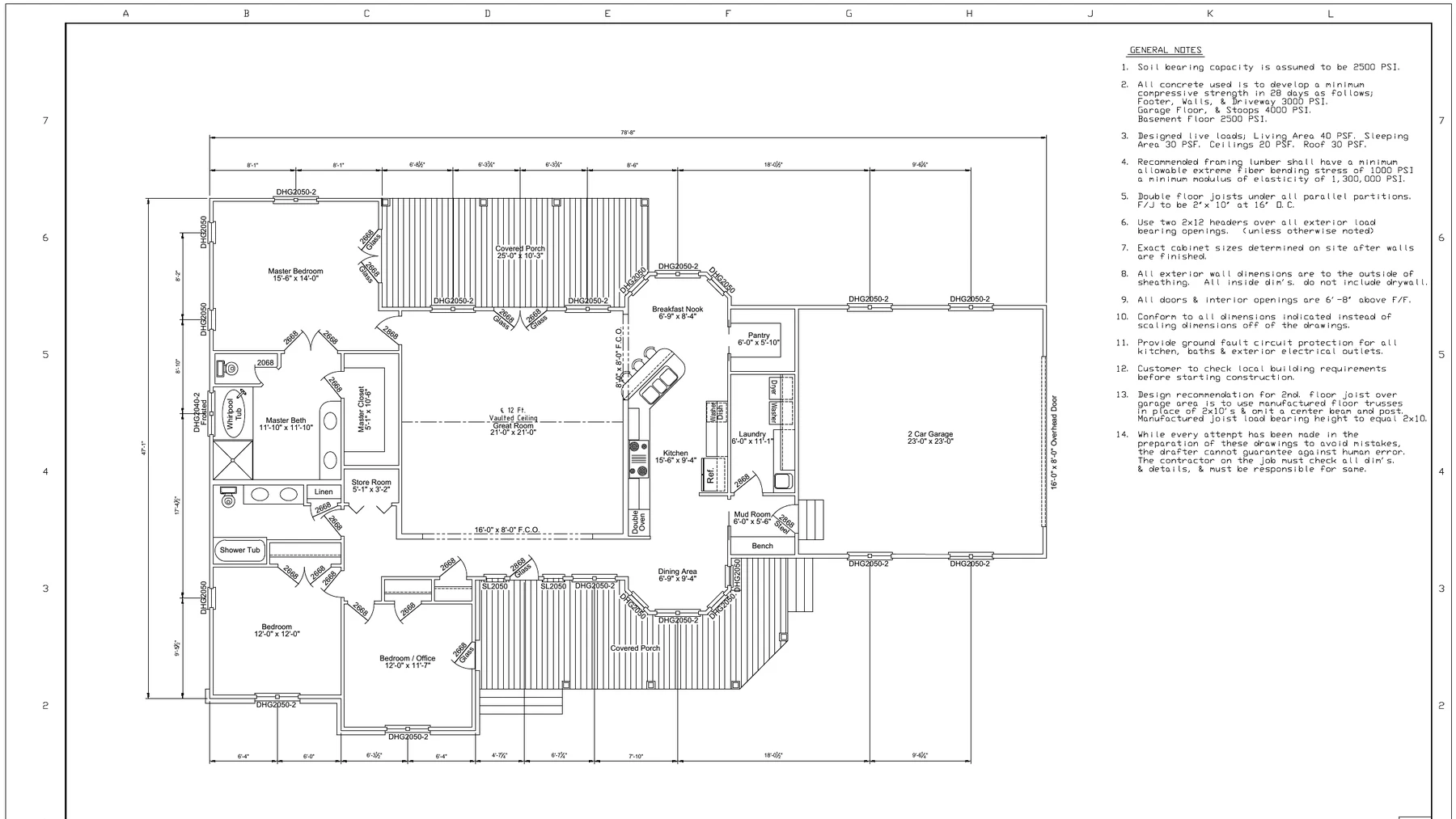

Floor plan · Custom residential design
House Plan 64 — First-Floor Plan
A dimensioned first-floor layout with room sizes, door swings and fixture locations.

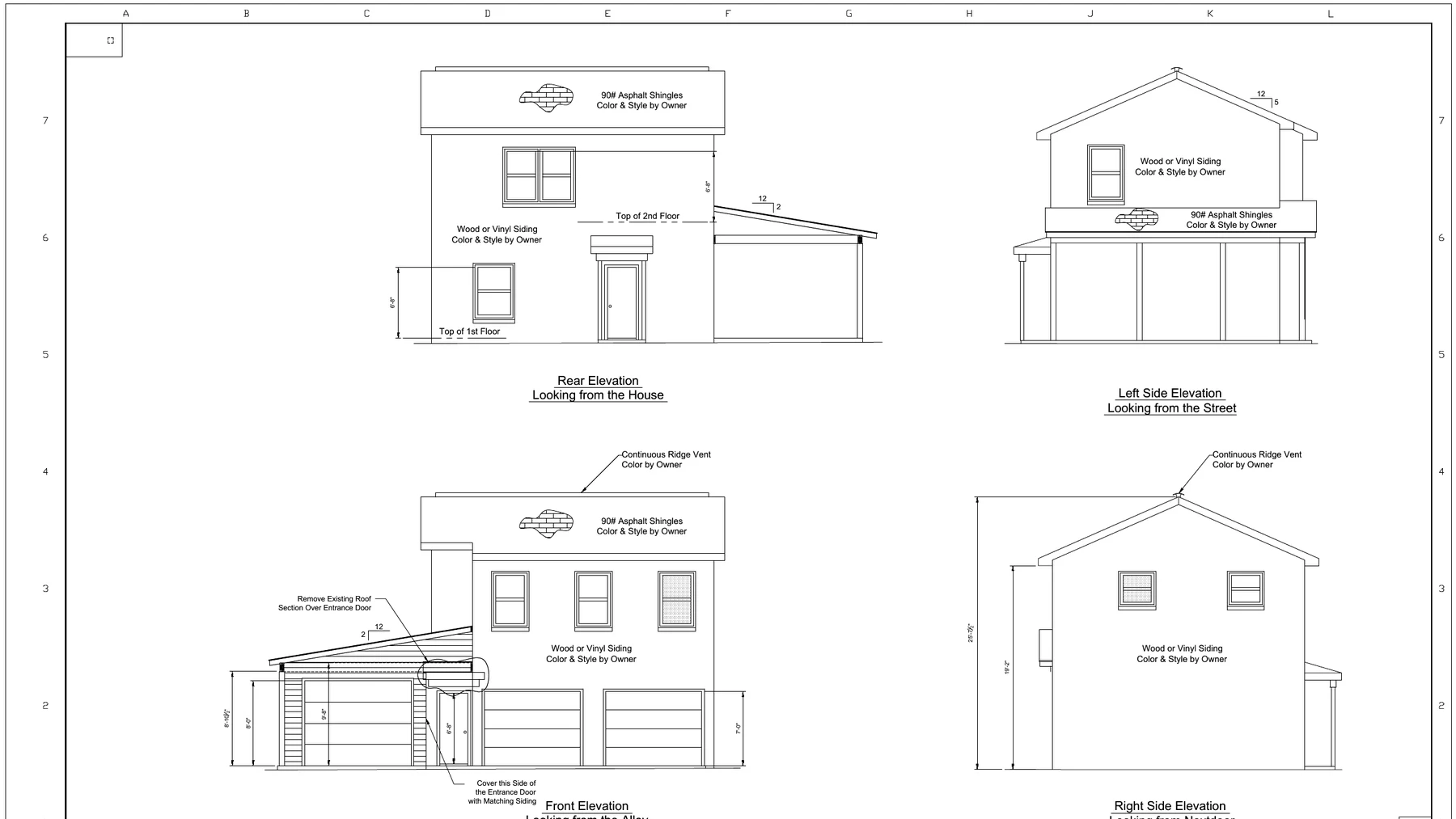

Elevations · Custom residential design
House Plan 63 — Front & Rear Elevations
Coordinated exterior elevations with porch detailing, balanced openings and roofline transitions.

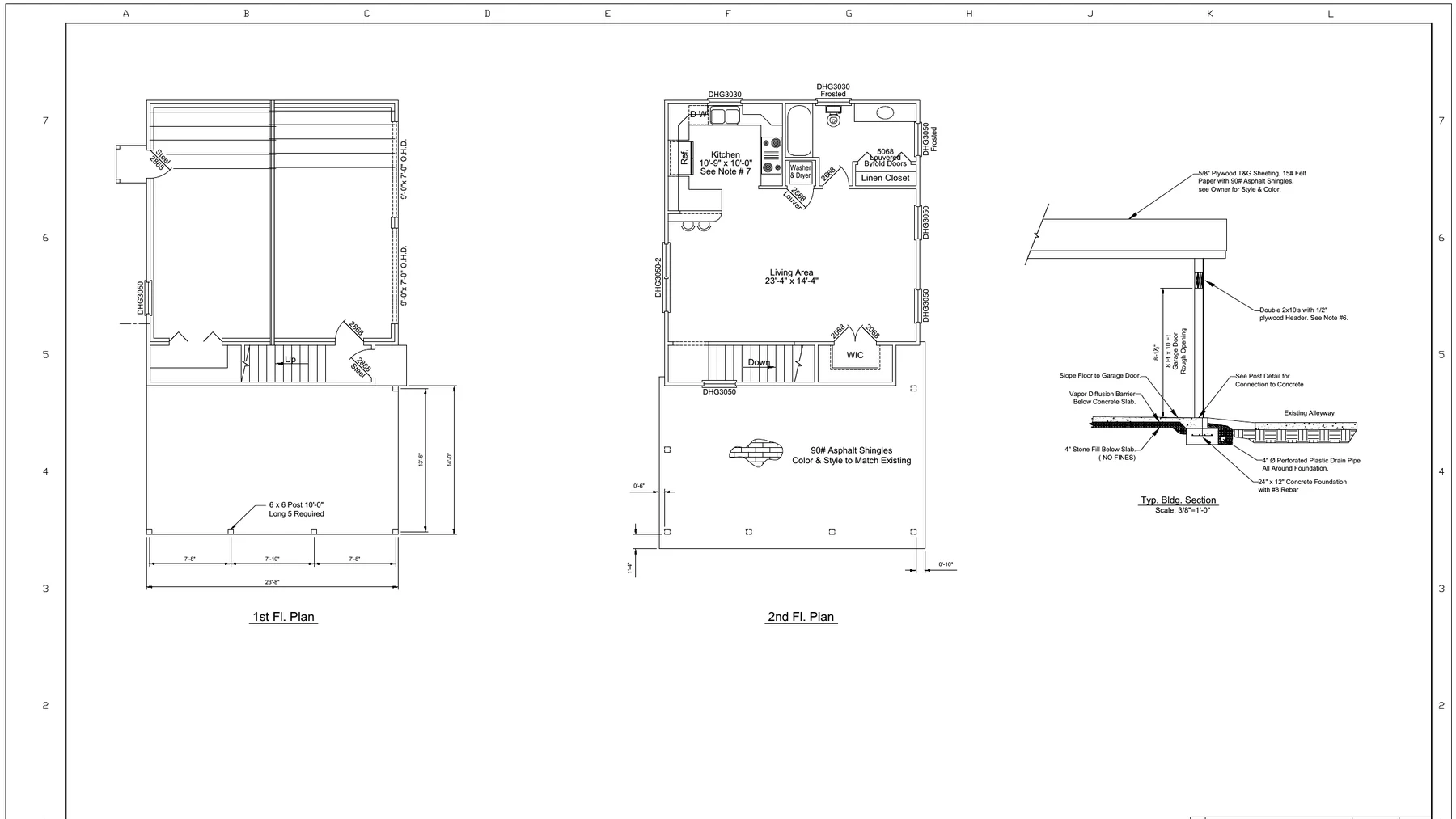

Floor plan · Custom residential design
House Plan 63 — First-Floor Plan
First-floor plan with full dimensions, labels and notes coordinated with the elevation set.

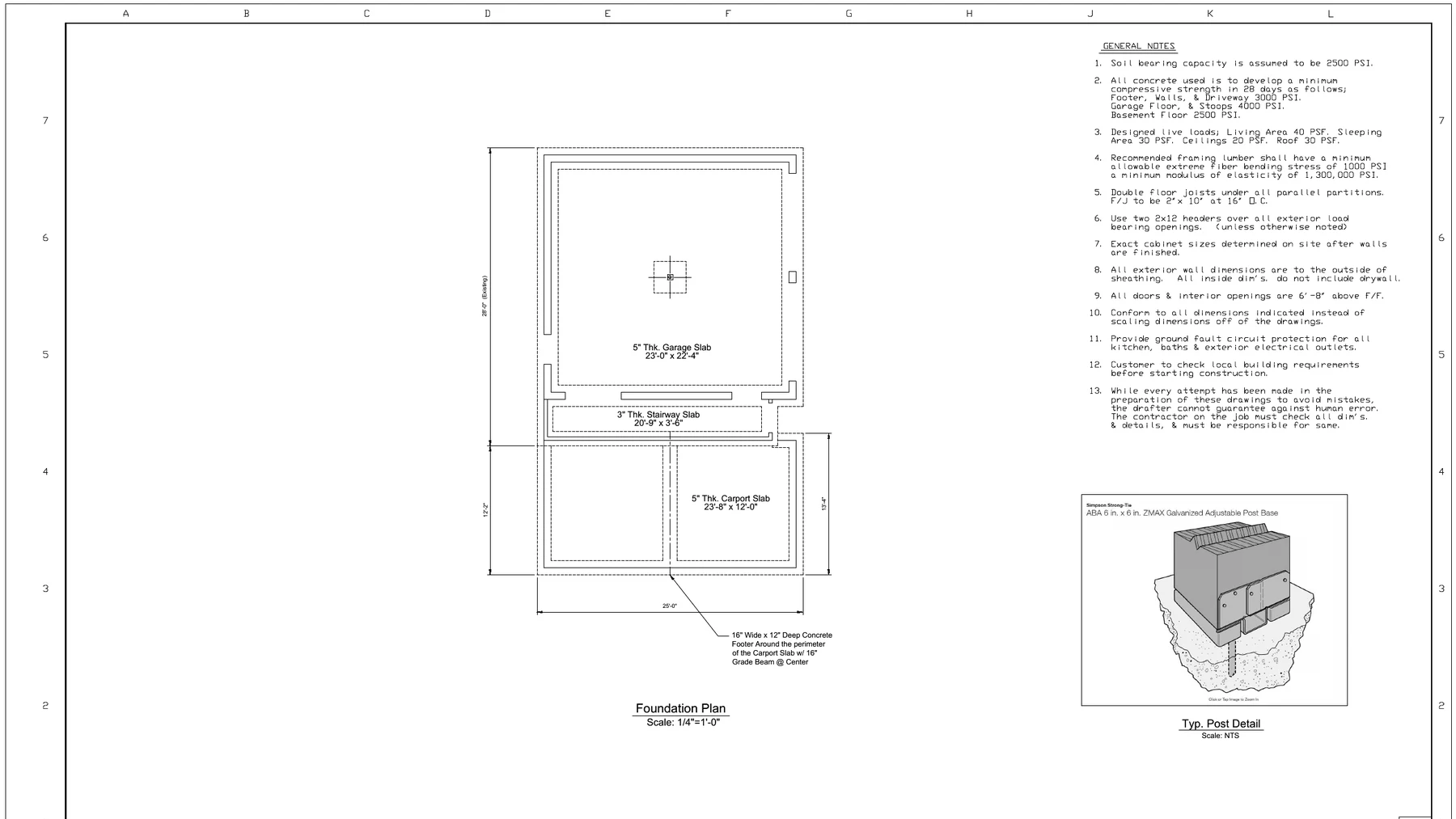

Foundation plan · Structural design
House Plan 63 — Foundation Plan
Foundation layout drawn for permitting and construction, including slab, footing and post details.

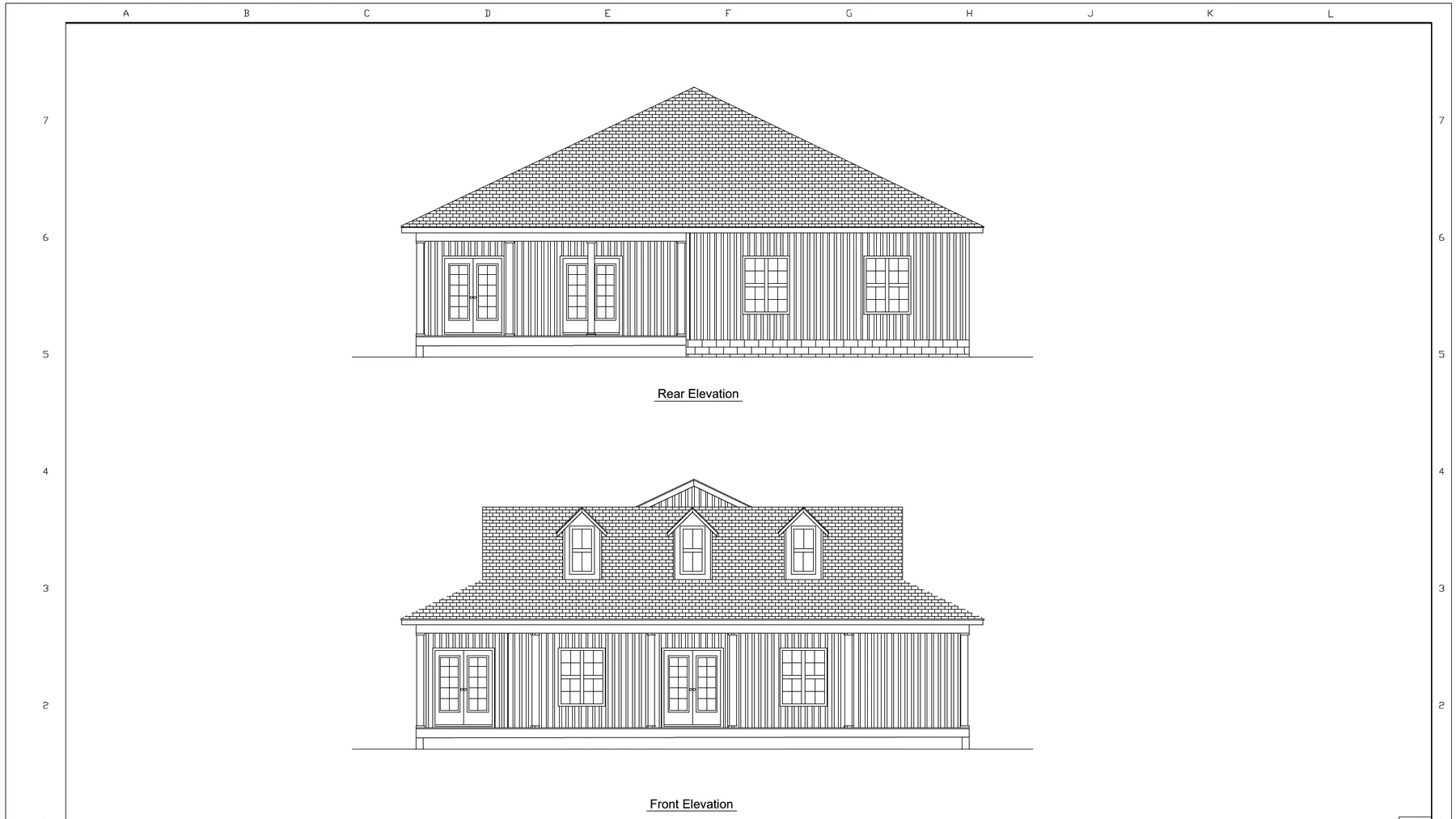

Elevations · Custom residential design
House Plan 62 — Front & Rear Elevations
An elevation study with a broad porch, dormer detailing and brick wainscot for a compact design.

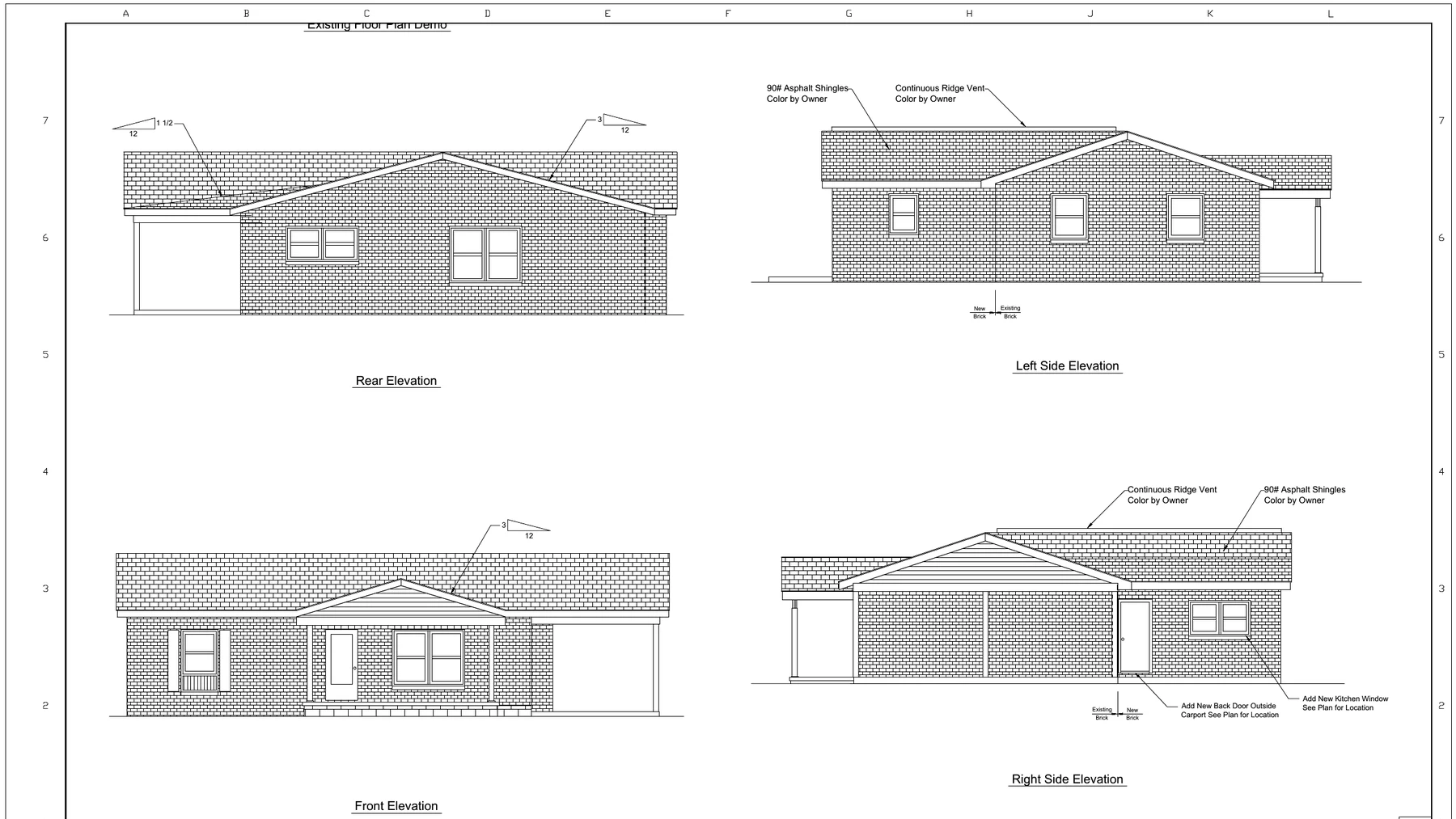

Elevations · Custom residential design
House Plan 60 — Front & Rear Elevations
Exterior elevations documenting siding, roof pitch and openings for the full building envelope.
Foundation plan · Structural design
House Plan 60 — Foundation Plan
Foundation plan with garage, stairway and carport slab details ready for the permit set.
More Work
Forty years doesn't fit on one page.
We have far more plans, elevations and completed projects than we can post. Tell us the kind of home you're after and we'll pull examples that match.
